Products - MICA INSULATED STRIP / PLATE HEATER

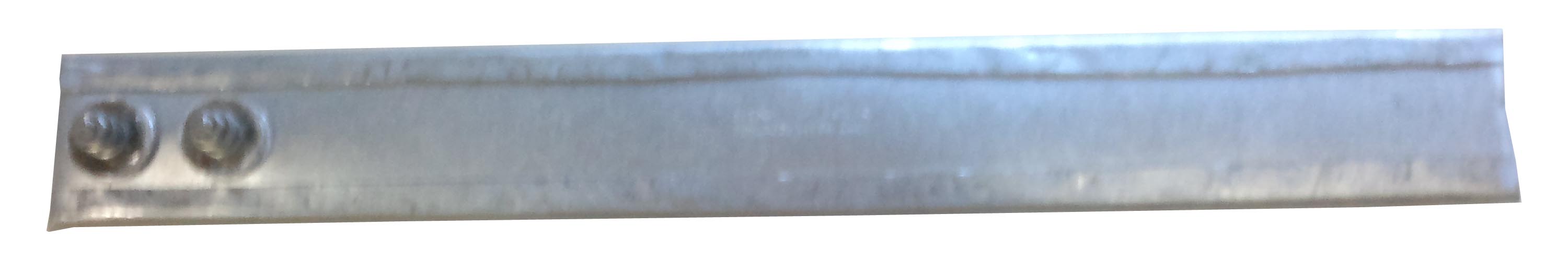

STRIP HEATER

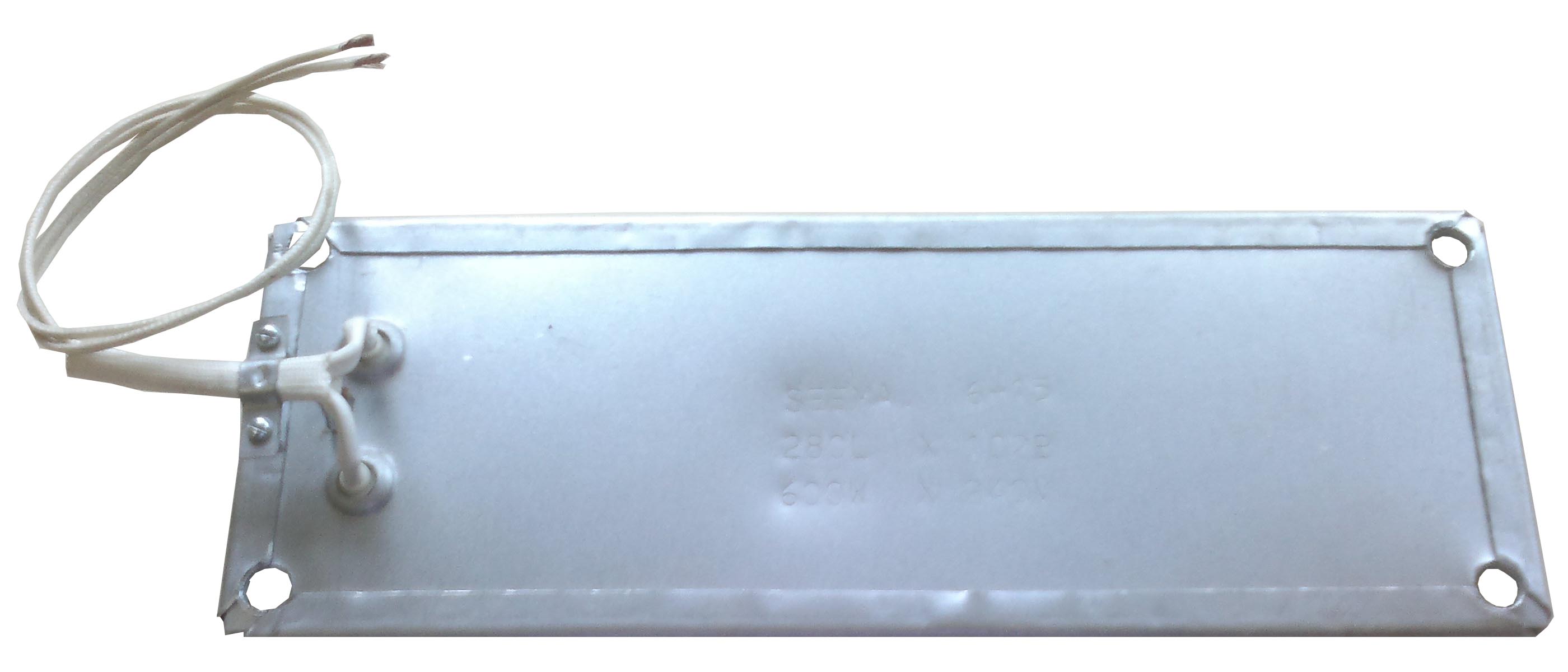

PLATE HEATER


LEIā„¢ Mica Insulated Strip heaters / Plate heaters are sheathed in rust-resistance steel or in stainless steel sheath as it provides physical strength and good thermal conductivity. Specially selected mica grade and thickness is used to insulate the windings, providing excellent thermal conductivity and dielectric strength.


These heaters are available with various terminal options: Screw terminals / Pin socket or with flexible wire leads. Various mounting holes can be provided as per customer specifications.


Applications:

  • Lamination Machinery's
  • Rubber Molding Machinery's
  • Ovens
  • Sealing Machines
  • Space heating
  • Drying Processes

HEATER TYPE

MAXIMUM WATT DENSITY

MAXIMUM OPERATING TEMPERATURE

Mica Strip

25W/IN 2

350 DEG C.
